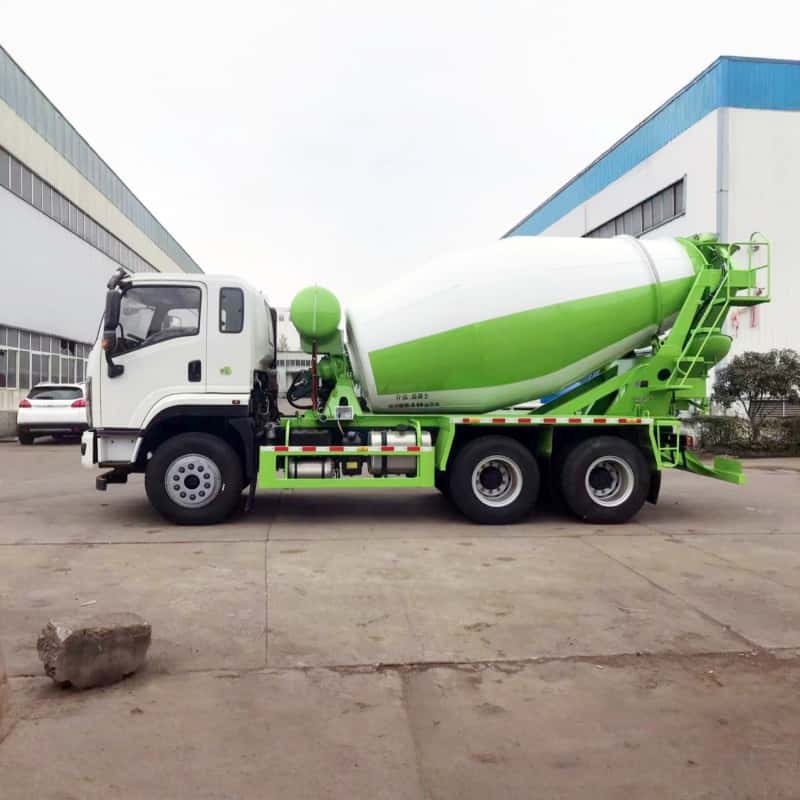

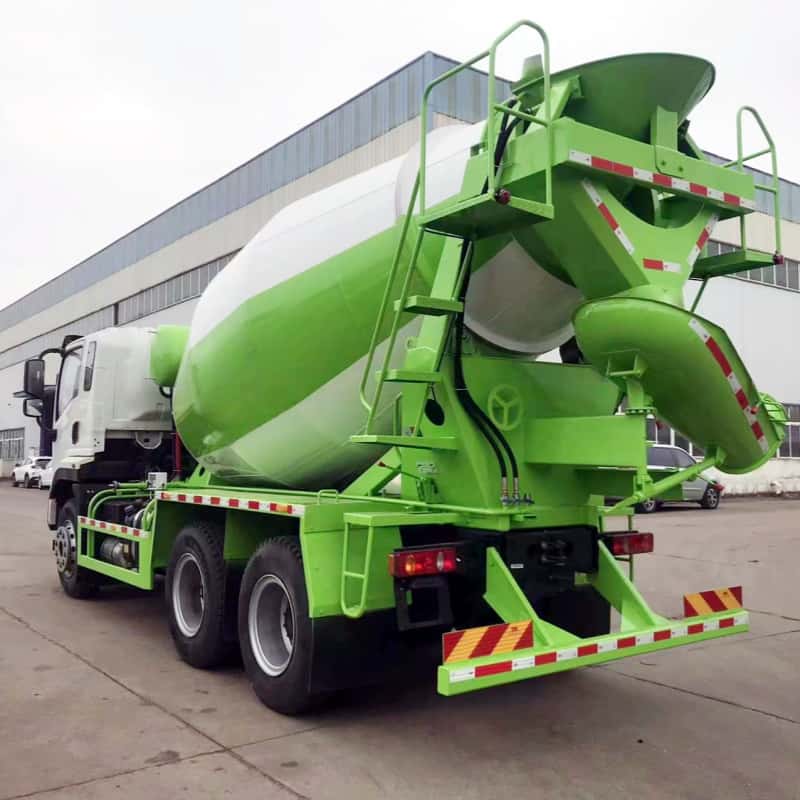

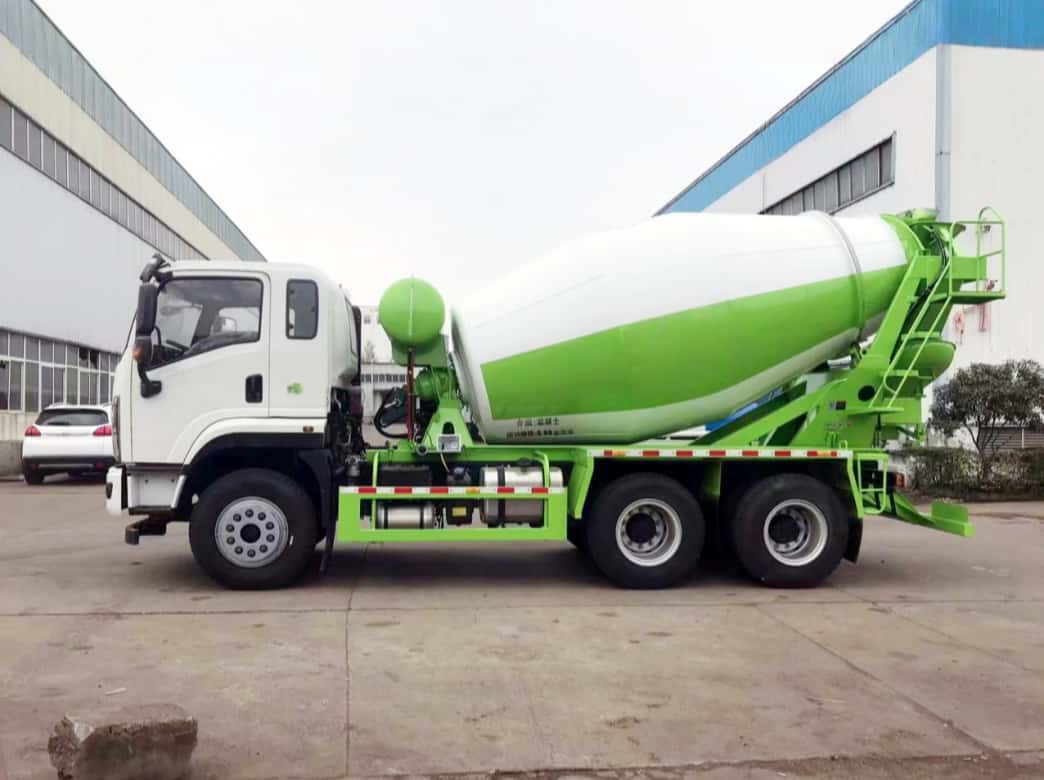

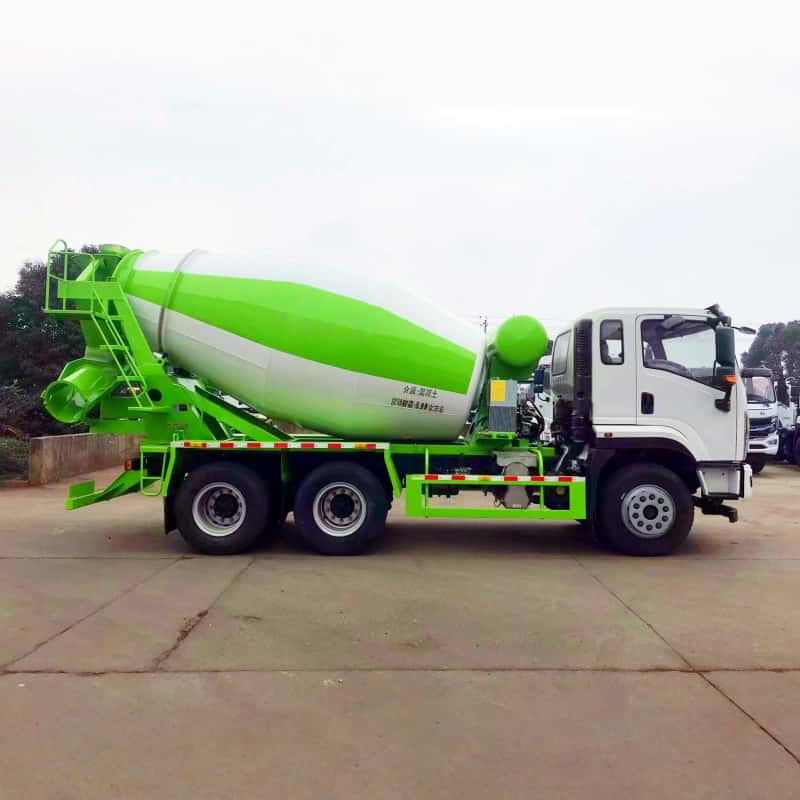

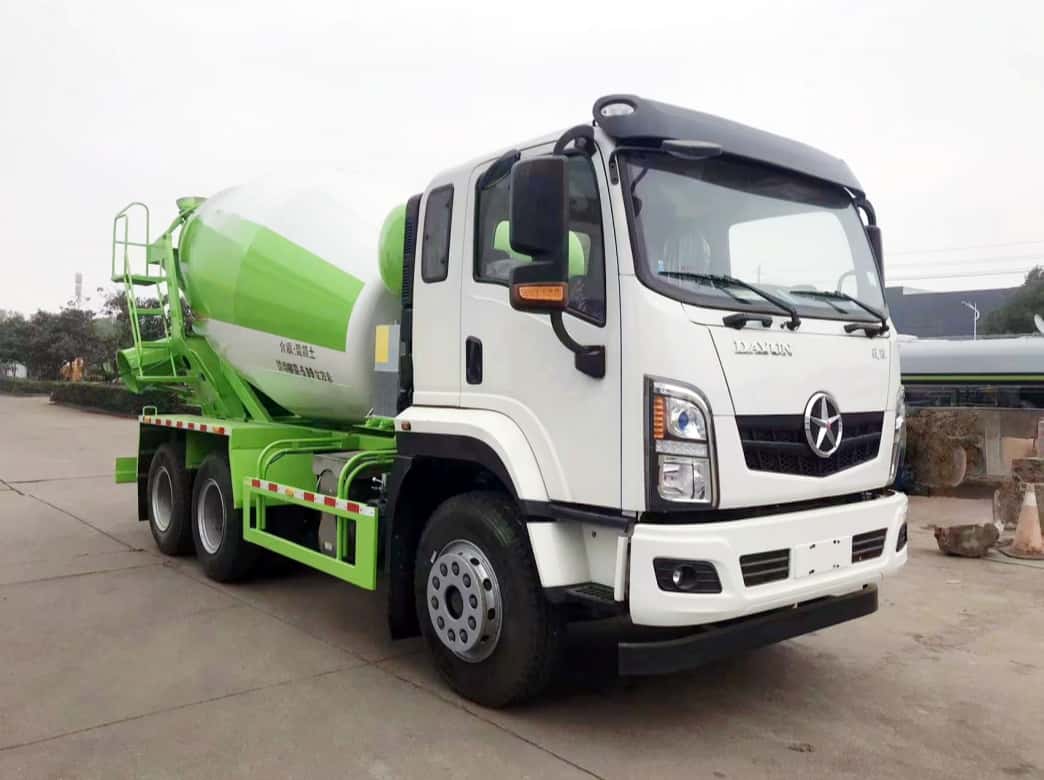

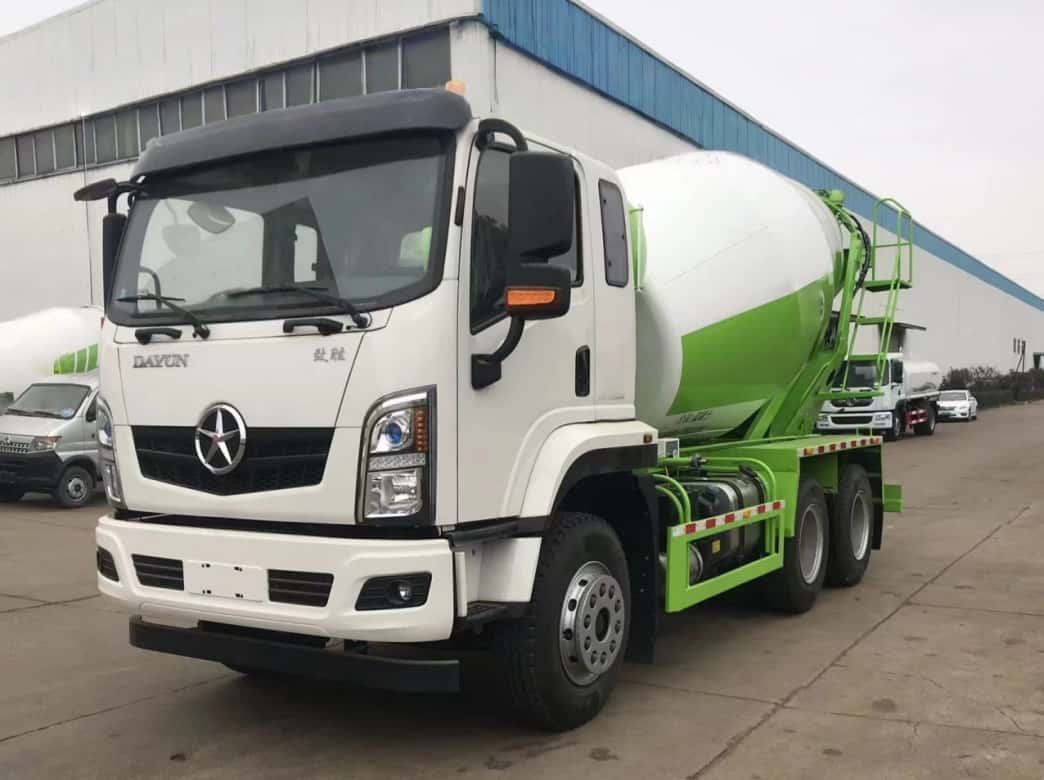

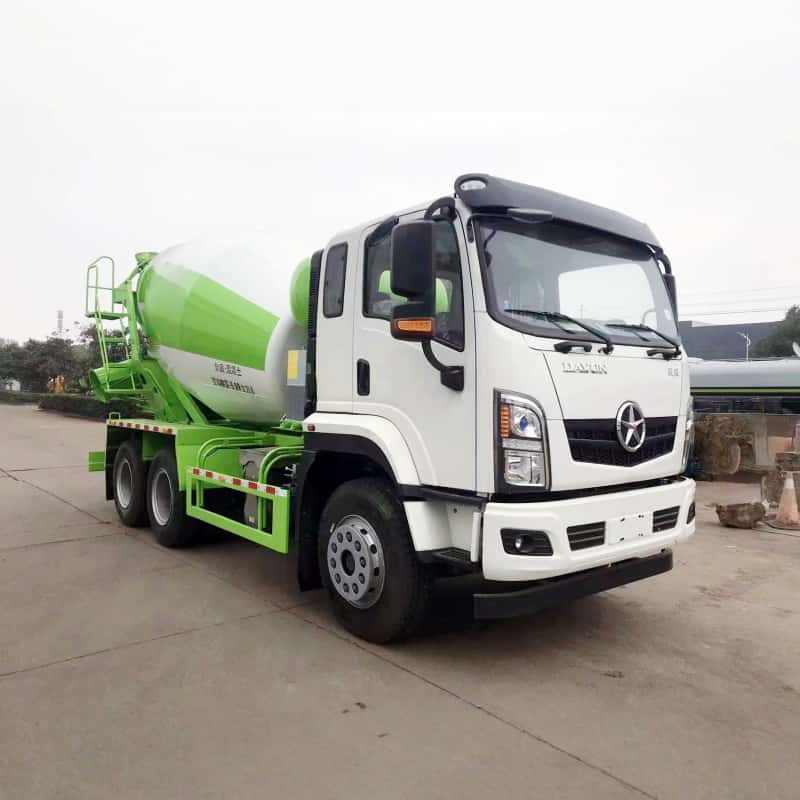

Dayun 6x4 7 Cubic Meter Concrete Mixer Truck

Dayun 6x4 7 Cubic Meter Concrete Mixer Truck

Name: Dayun 6x4 7 Cubic Meter Concrete Mixer Truck
Availability: InStock

This Dayun 6x4 7m³ concrete mixer truck is a compact, high-performance mobile concrete solution engineered for medium-scale construction projects, urban infrastructure, and rural infrastructure development. Built on Dayun's proven 6x4 heavy-duty chassis, it features a 7m³ high-strength wear-resistant mixing drum with a reliable hydraulic drive system, delivering consistent, on-time concrete delivery across Africa, the Middle East, Southeast Asia, and other global markets.

Highlights:

✅ Maximum volume: 7 cubic meters, an ideal golden capacity

✅ Chassis: Made in China DAYUN chassis (left/right hand drive available)

✅ Rotation: 180° rotation of the material guide chute

✅ Safety: Hydraulic system and bilateral joint control operation

Inquire Now

Dayun 7 m³ concrete mixer truck, suitable for commercial concrete batching plants and small construction sites

Your trusted concrete transportation solution

Applications

This Dayun 7 cubic meter concrete mixer truck is mainly used for concrete transportation in urban civil construction, small and medium-sized infrastructure projects such as bridges and culverts, water conservancy facility construction, short-distance transportation at small and medium-sized mixing plants, and on-site concrete transfer at construction sites.

Urban civil buildings: concrete transportation for small and medium-sized construction projects such as residential buildings, self-built houses, shopping malls, schools, and hospitals.
Municipal engineering and roads: rural highways and municipal road maintenance.
Small infrastructure projects: construction of bridge piers, culverts, water canals, and water conservancy facilities.
Mixing plants: short-distance transportation for small and medium-sized mixing plants.

Why choose our Dayun 7 m³ mixer truck

Generous capacity and flexible maneuverability: With a practical volume of 8 cubic meters and a moderate overall size, it features a small turning radius, allowing easy access to narrow rural roads, residential construction sites, underground construction areas and other confined spaces.
Durable mixing tank: The mixing tank is made of high-strength wear-resistant steel plate with thickened and wear-resistant blades, ensuring smooth discharge, low residue rate, longer service life and lower maintenance costs.
Stable hydraulic system: Equipped with high-quality hydraulic pumps, motors and reducers, it operates smoothly with a low failure rate, guaranteeing long hours of continuous operation without delaying the construction schedule.
Comfortable driving experience: Original Dayun cab with spacious space, excellent shock absorption and wide vision. Standard equipped with air conditioning and power windows, reducing driver fatigue during long-hour driving.

Comprehensive Safety Protection

Hydraulic System Safety: Equipped with hydraulic safety locks and an emergency manual pump, enabling manual control of tank discharge and rotation in case of sudden failures, thus preventing major losses caused by concrete solidification.
Operational Safety: The dual-sided operating platforms at the rear are fitted with anti-slip pedals and safety handrails for safer boarding and alighting; the control buttons are rationally arranged and support remote operation, reducing the risks associated with discharging.
Discharging and Protection Safety: Discharge chute limit devices and anti-disengagement design prevent the chute from swinging and causing injuries during discharging; the water tank and pipelines are laid out in a standardized manner with no leakage or interference.

Technical Specifications

Category	Item	Unit	Data
Overall Dimensions	Length	mm	8200
	Width	mm	2480
	Height	mm	3650
	Number of axes	/	3
	Wheelbase	mm	3900+1350
	Tires	/	10.00R20
Main Performance	Total mass	kg	23000
	Curb weight	kg	11000
	Stirring volume	m³	7
	Feed speed	r/min	≤12
	Stirring speed	r/min	0-15
	Discharge speed	r/min	≤28
	Residual rate	/	≤1%
	Tank rotation	/	360°

Video

Drawing

Main Components

Cement Mixer Truck Roller Assembly
Installed below the middle and rear section of the mixer drum of the concrete mixer truck
Concrete Mixer Truck Hydraulic Oil Cooler
It is the core thermal management component of the mixer truck hydraulic system
Special hydraulic reducer for concrete mixer trucks
It is the "power core" installed on the concrete mixer truck, responsible for converting the high speed and low torque of the hydraulic motor into low speed and high torque, driving the mixing drum to rotate.

Universal drive shaft of concrete mixer truck
It is a key transmission component connecting the hydraulic motor and the hydraulic reducer, responsible for high-speed power transmission
Pneumatic control locking assembly of concrete mixer truck
It is the core pneumatic control component that controls the forward and reverse rotation and stop of the mixing drum.
Discharge chute of concrete mixer truck
It is installed below the discharge opening of the mixer drum of the mixer truck

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast shipping of genuine DAYUN and hydraulic components to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the lead time for a customized 7m³ concrete mixer truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our aerial work platforms comply with ISO and CE standards, and the DAYUN chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The DAYUN chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
