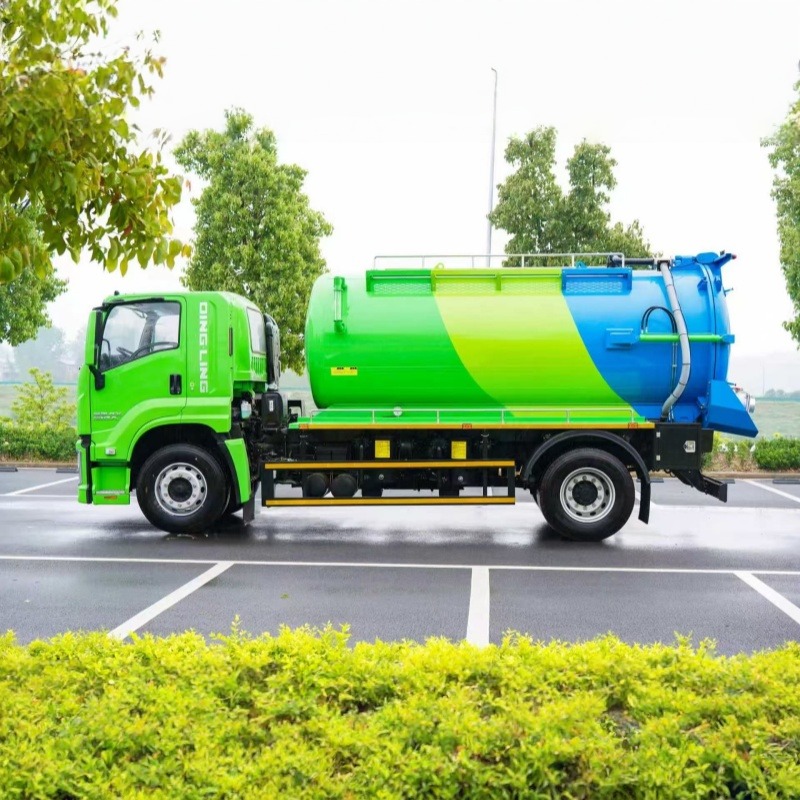

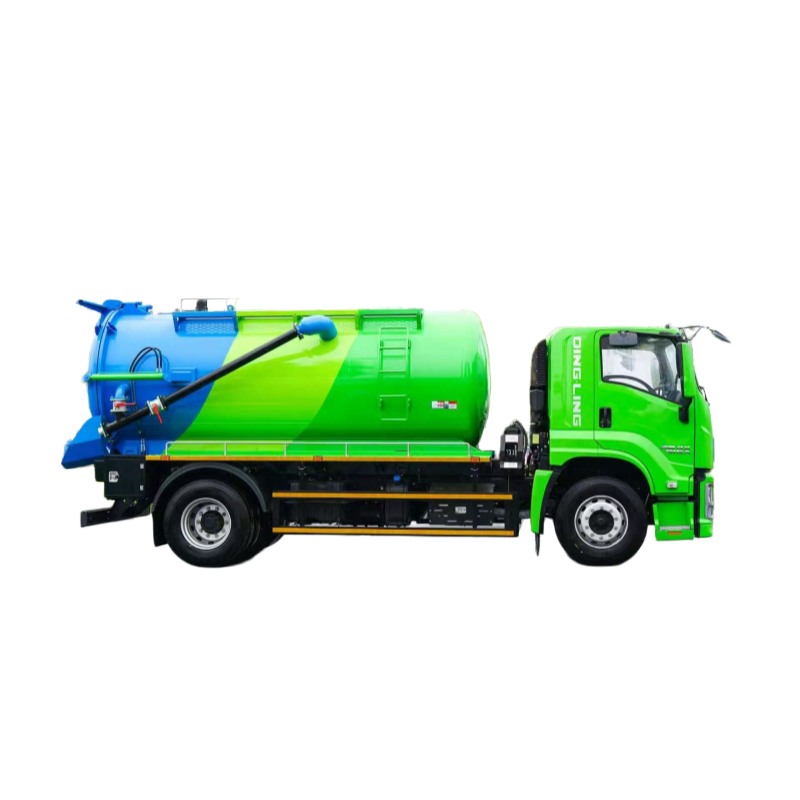

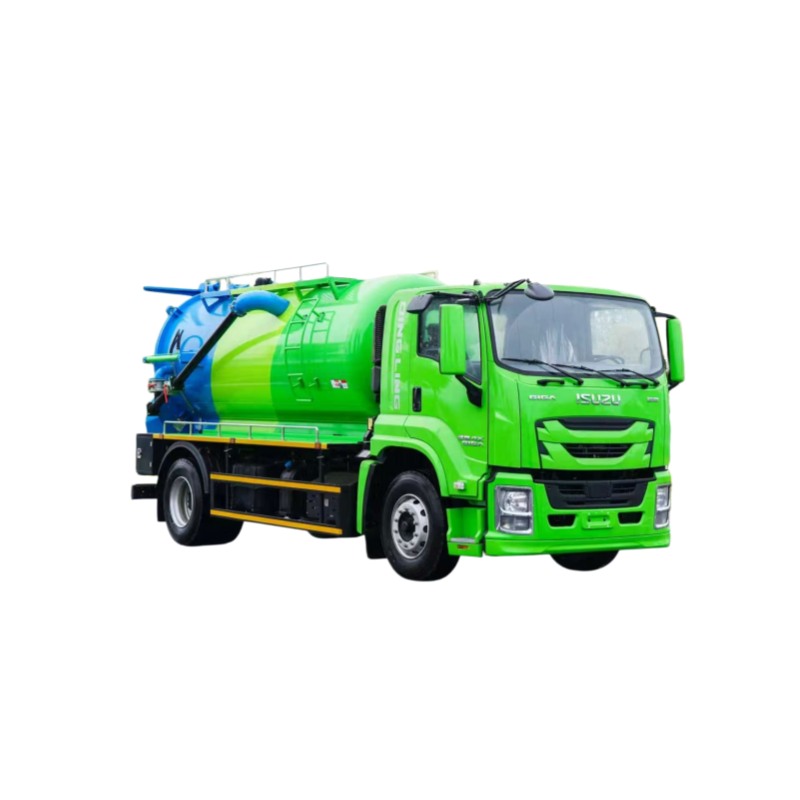

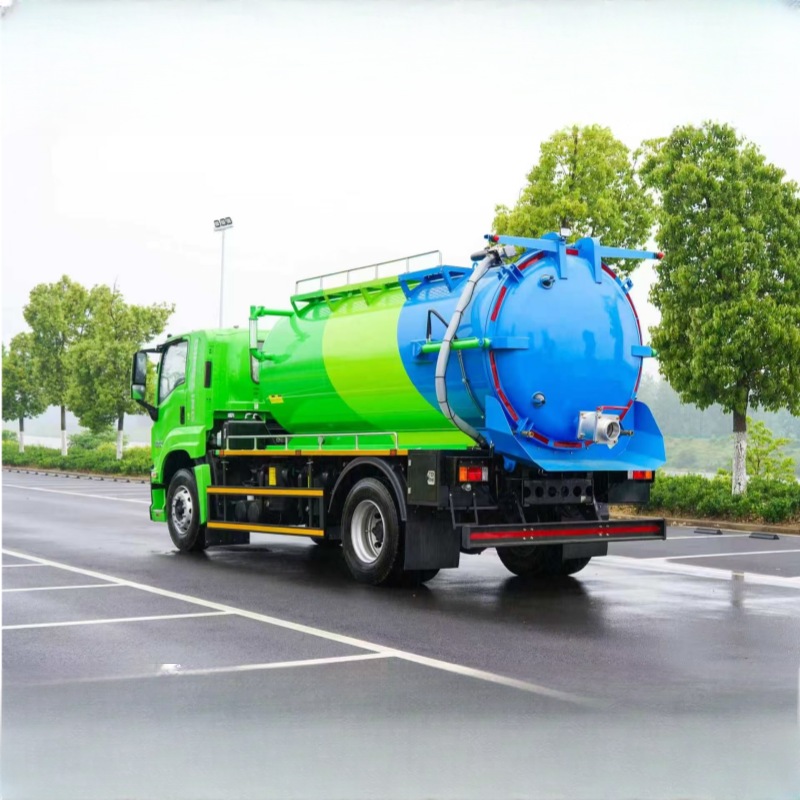

Isuzu 10,000L Vacuum Sewage Suction

Name: Isuzu 10,000L Vacuum Sewage Suction
Availability: InStock

The Isuzu 10CBM vacuum sewage suction truck is built on a new-generation Isuzu GIGA 4x2 chassis, equipped with a powerful 205HP 4HK1-TC60 diesel engine and MLD 6-speed transmission, delivering reliable performance for municipal sanitation, septic waste collection, and industrial wastewater handling.

The tank body is manufactured from high-quality WISCO steel with 6mm thickness and reinforced anti-wave baffles to ensure stability during transport. It features dual 10-ton vacuum pumps for strong suction efficiency and rapid loading capability.

Designed for heavy-duty operation, the truck includes a rear hydraulic opening door with self-dumping function, allowing direct discharge of waste. The system is equipped with stainless steel filtration to protect the vacuum pump from debris and extend service life.

Ideal for sewage suction, septic tank cleaning, drainage maintenance, and municipal sanitation services.

Highlights:

✅ Ultra-high pressure and large flow: pressure 16～24MPa

✅ Chassis: Isuzu classic power, fuel-efficient, durable and with extremely low failure rate

✅ Sewage suction system: vacuum sewage suction

✅ Safety: overflow prevention, emergency shutdown, audible and visual alarm

Запросить информацию сейчас

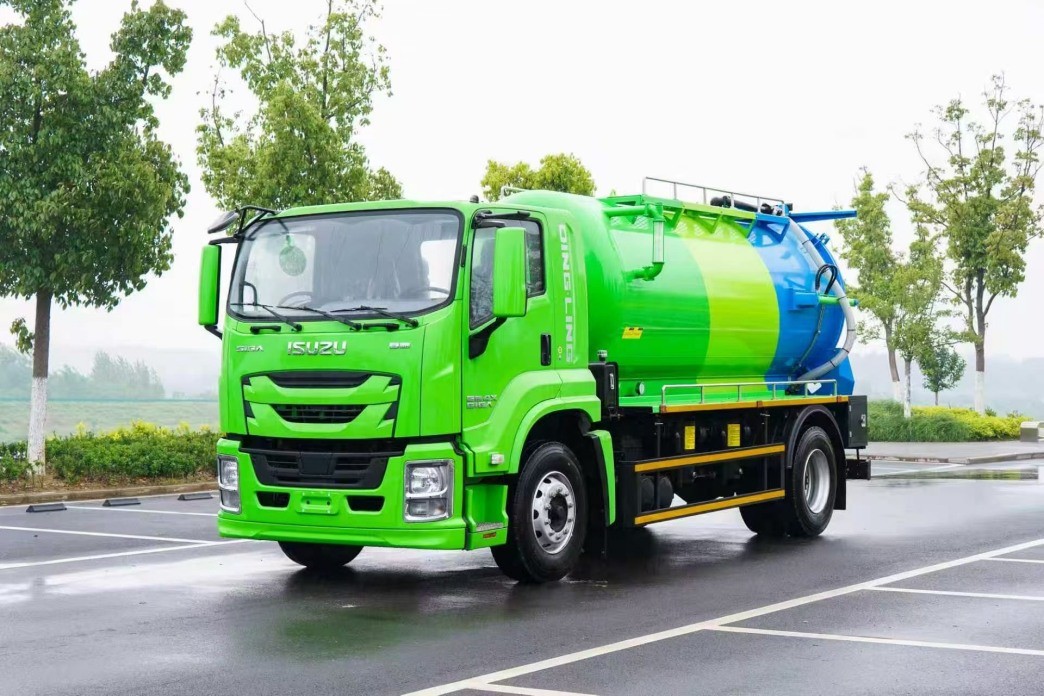

Isuzu 10CBM Vacuum Sewage Truck Front View – Heavy Duty Sanitation Vehicle

Your trusted solution for cleaning and sewage suction

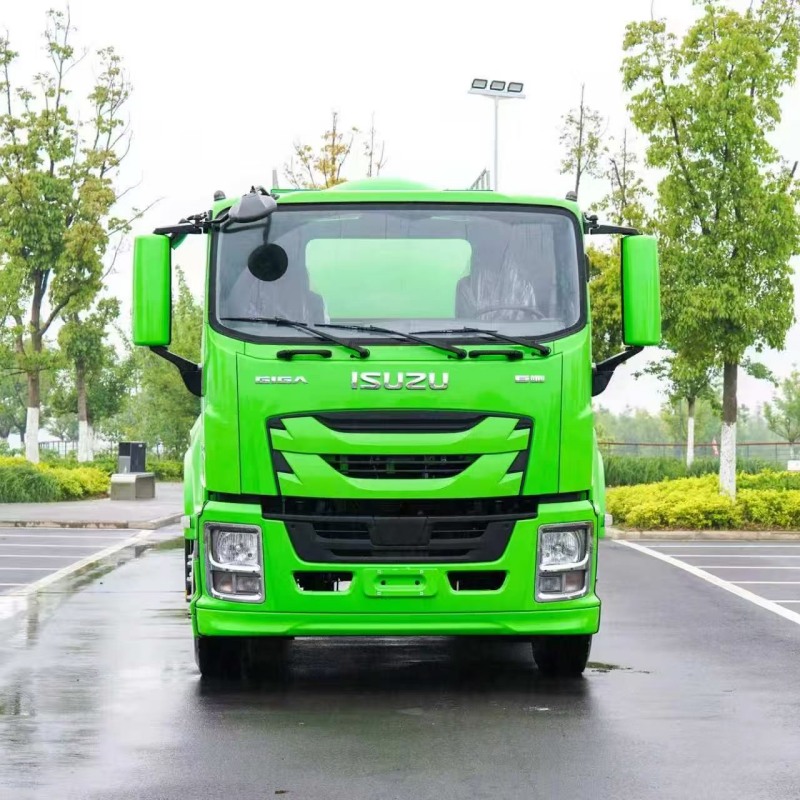

Isuzu 10CBM Vacuum Sewage Truck Front View

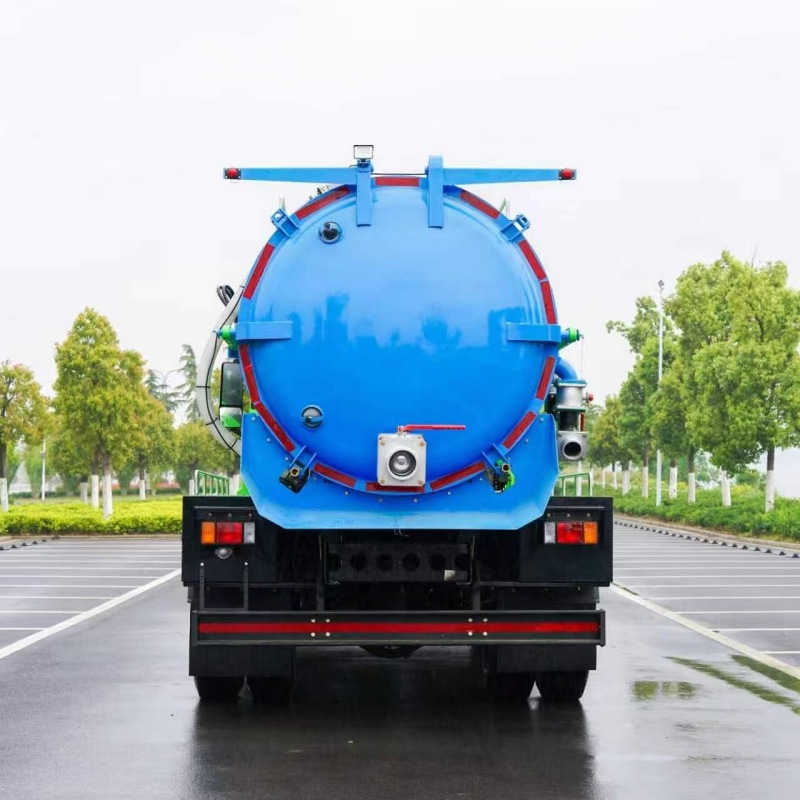

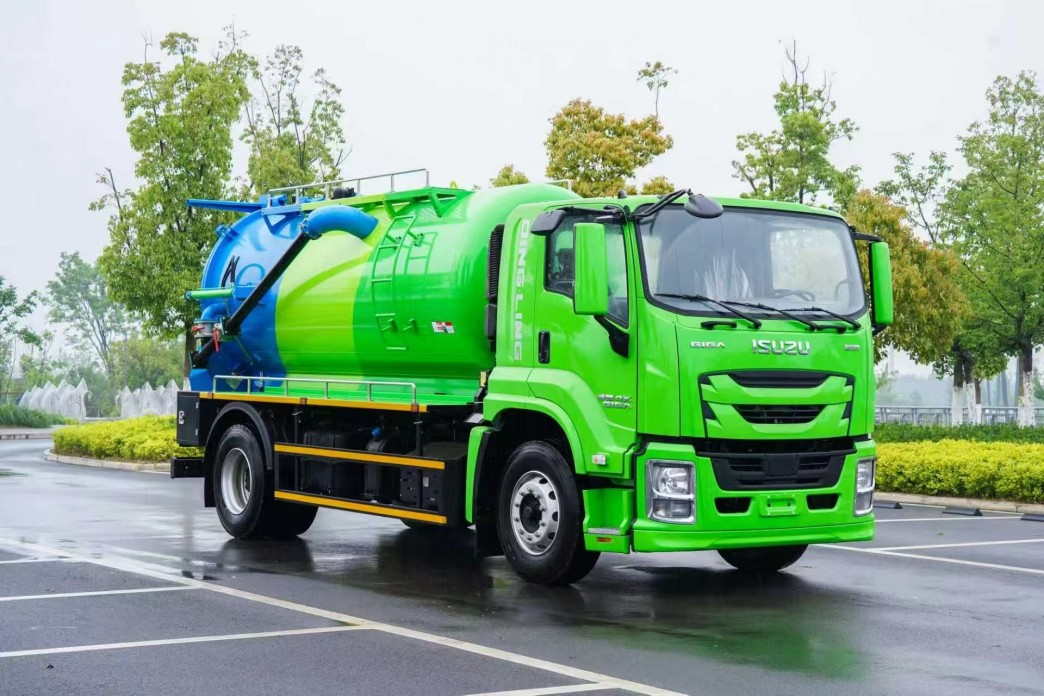

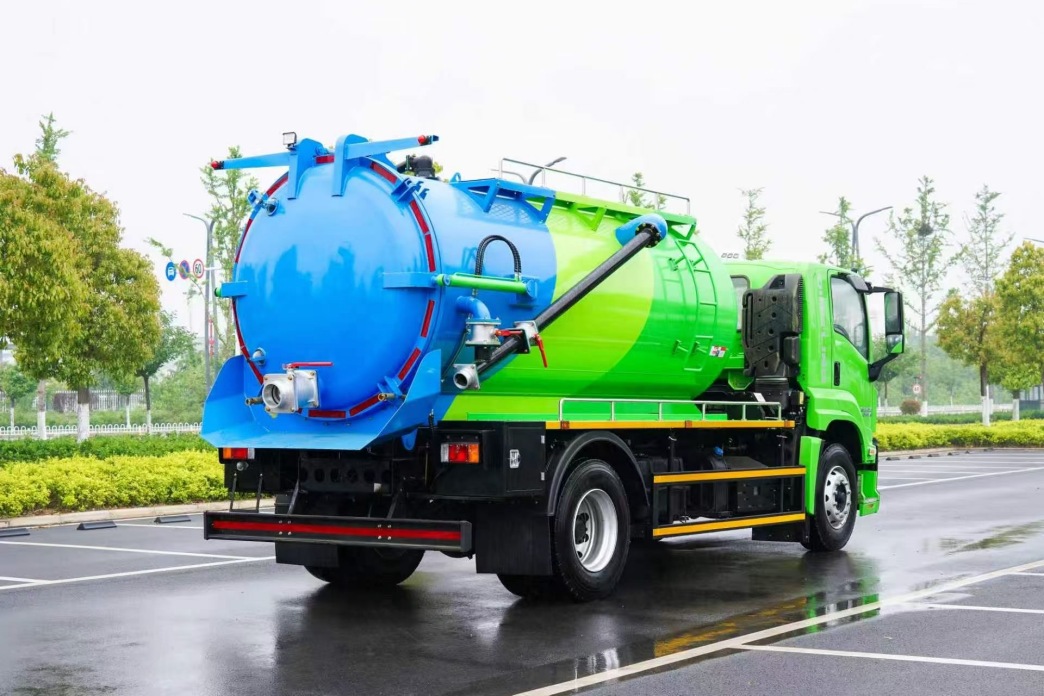

Rear Hydraulic Discharge System with Self-Dumping Function

Isuzu 10CBM Vacuum Sewage Truck Front View

Applications

This Isuzu 10-cubic-meter vacuum cleaning and sewage suction truck is mainly used for the dredging of large-scale urban pipe networks, suction of silt from rivers and reservoirs, emergency drainage of chemical and municipal sewage, sewage transfer, as well as sanitation and cleaning in large residential quarters, factory areas and ports.

Municipal maintenance: high-pressure flushing of pipe networks and flood drainage and rescue
Septic tank cleaning: suction of feces, sludge and oil stains
Road maintenance: dredging of drainage ditches
Township environmental improvement: dredging of sewage pipe networks and pond desilting

Why choose our Isuzu vacuum sewage suction truck?

Outstanding and flexible operating scope: Suitable for municipal sanitation, industrial enterprises, park property management, etc.
High load-bearing operation capacity: One vehicle completes the whole process of "washing + dredging + sewage suction + sewage discharge"
Efficient operation: Dual systems on the upper equipment, coordinated cleaning and sewage suction, doubling efficiency
Sturdy and durable: Built with Isuzu's original quality, stable and reliable. The upper equipment is equipped with a thickened tank body and hydraulic lifting, ensuring long-term stable operation of the equipment
Stable and reliable: Equipped with high-end high-pressure pumps and vacuum pumps, delivering stable movements and precise operations
Customization capability: Supports customization such as separate bins, heating and thermal insulation, remote control, and European-standard under-mounted equipment, meeting the needs of various projects and special working conditions.

Comprehensive Safety Protection

Operation Safety of the Tank: The hydraulic system of the tank is equipped with safety interlocks, and the hydraulic circuit is fitted with overload protection valves.
Automatic Alarm: The sewage tank is standardly equipped with an anti-overflow alarm and an anti-overflow probe. It will automatically alarm and cut off suction when the liquid level is too high, preventing sewage backflow from damaging the vacuum pump.
Structural Safety of the Tank: The tank has undergone hydrostatic testing and air tightness inspection to ensure no leakage and no deformation.

Technical Specifications

Category	Item	Unit	Data
Overall Dimensions	Length	mm	8350
	Width	mm	2500
	Height	mm	3450
	Rated Passengers	Persons	3
	Wheelbase	mm	4500
	Tires	/	295/80R22.5 (6+1 spare optional)5
Main Performance	Gross Weight	kg	18000
	Rated load capacity	kg	10000
	Curb weight	kg	8000
	Clean water tank	m³	1–1.5 m³
	Sewage suction tank	m³	10 m³ (10,000 liters)
	Sewage suction depth	m	≥8
	Sewage suction pipe diameter	mm	150
	High-pressure hose	m	60-80
	Gravity drain outlet	mm	150
	Sewage suction pump	L/min	2200
	High-pressure cleaning pump	L/min	275

Video

Drawing

Vacuum pump
Drain valve
High-pressure cleaning reel

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast shipping of genuine ISUZU and hydraulic components to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the lead time for customizing a 10-cubic-meter cleaning and sewage suction truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our sewage cleaning and suction truck comply with ISO and CE standards, and the ISUZU chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The ISUZU 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
