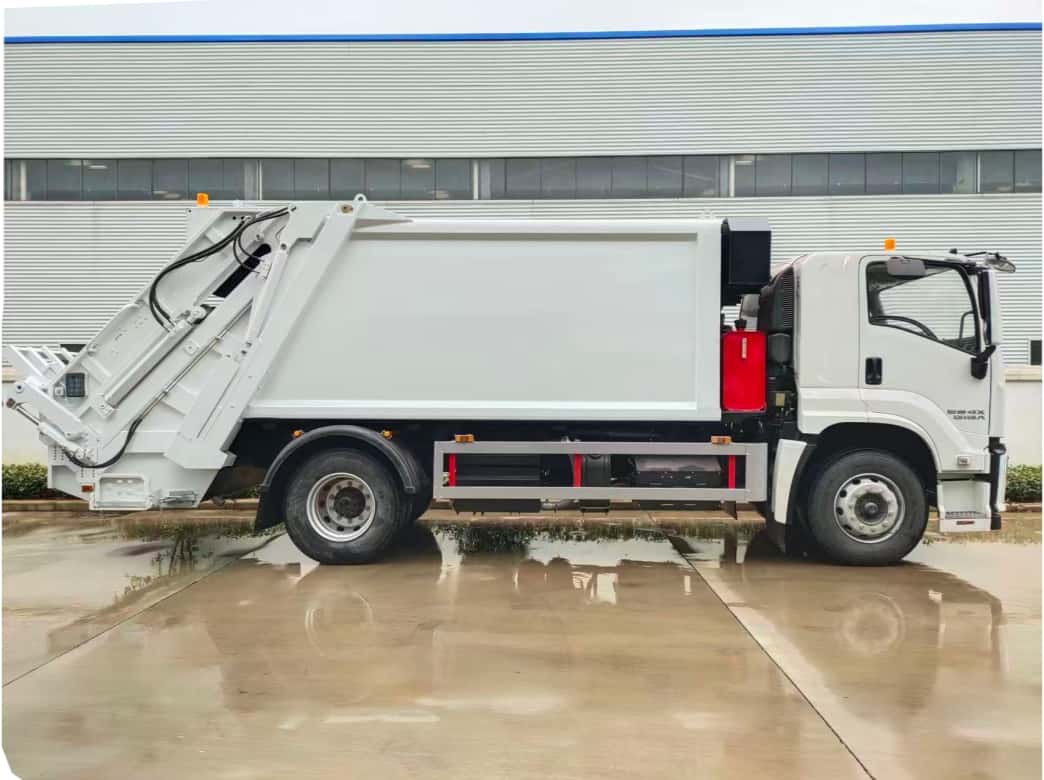

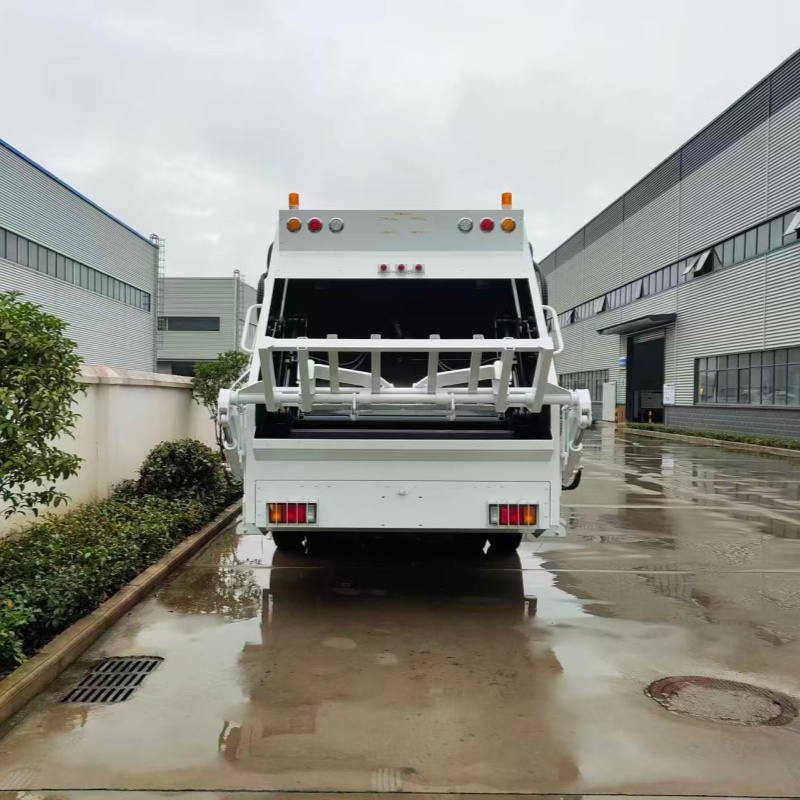

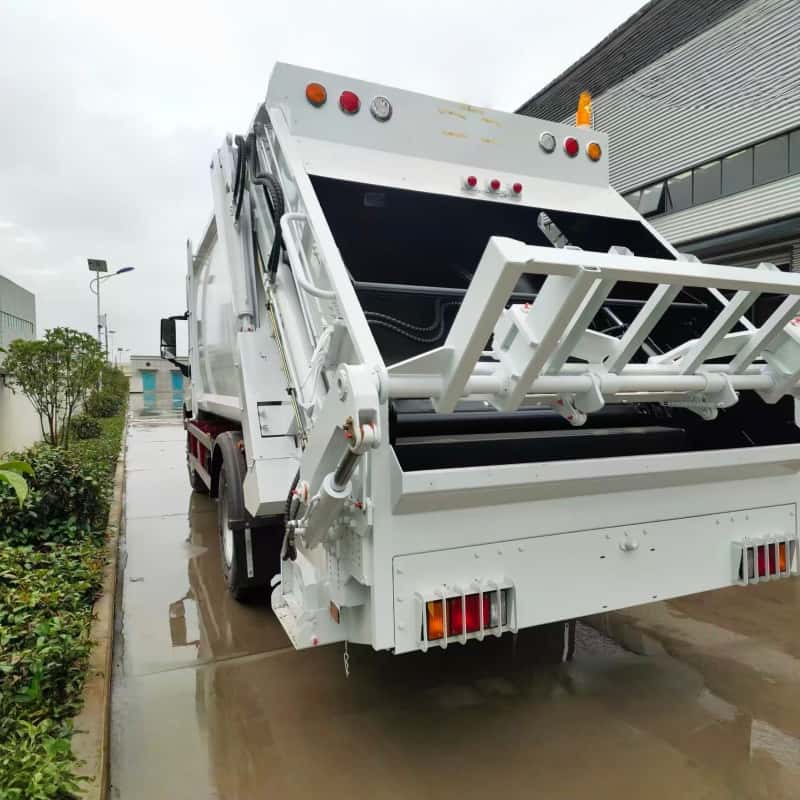

Isuzu 16,000 Liters Compactor Garbage Truck

Isuzu 16,000 Liters Compactor Garbage Truck

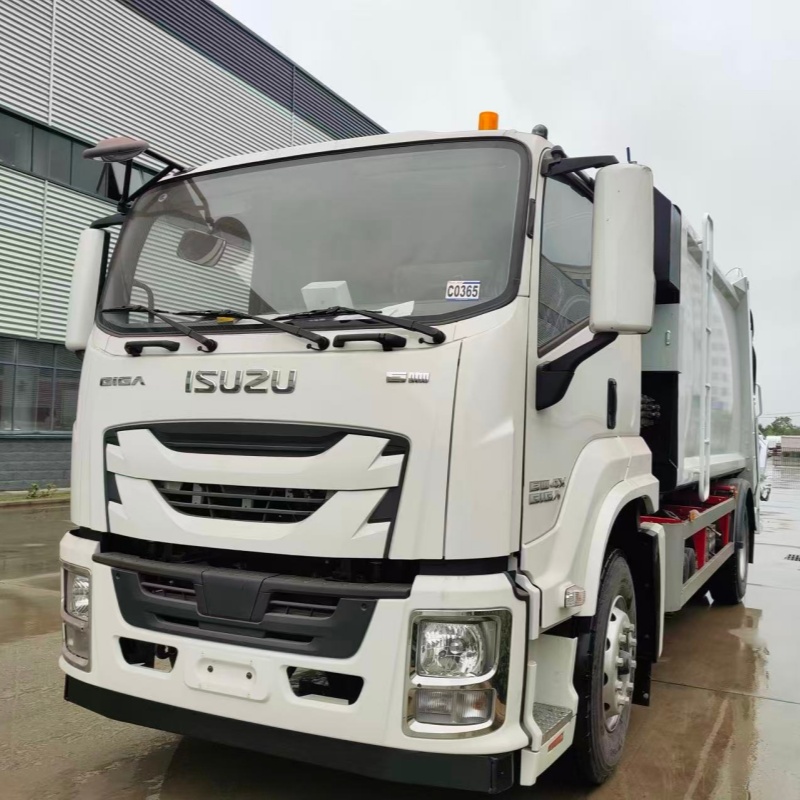

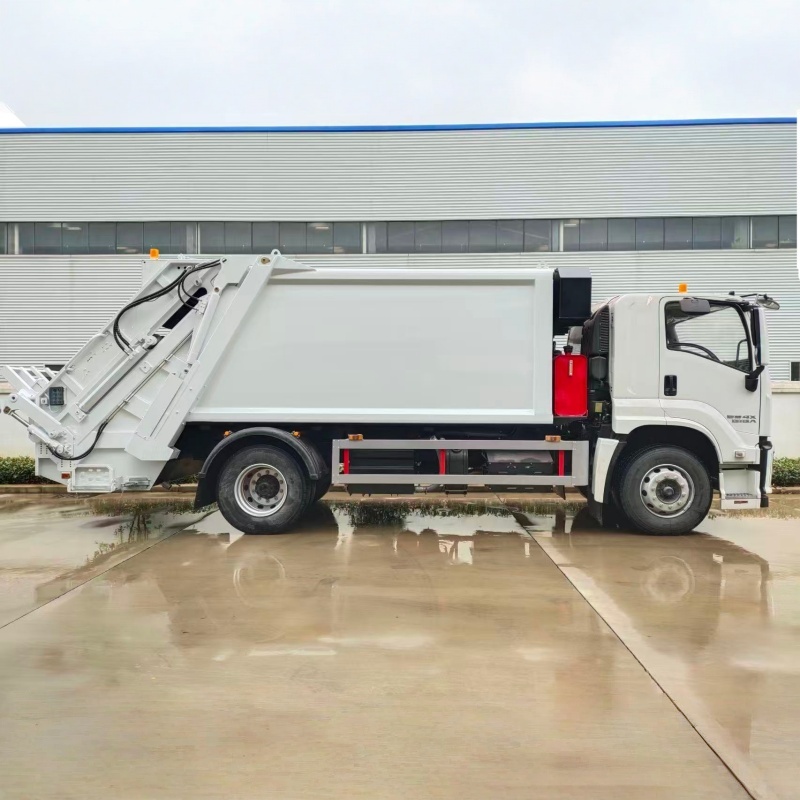

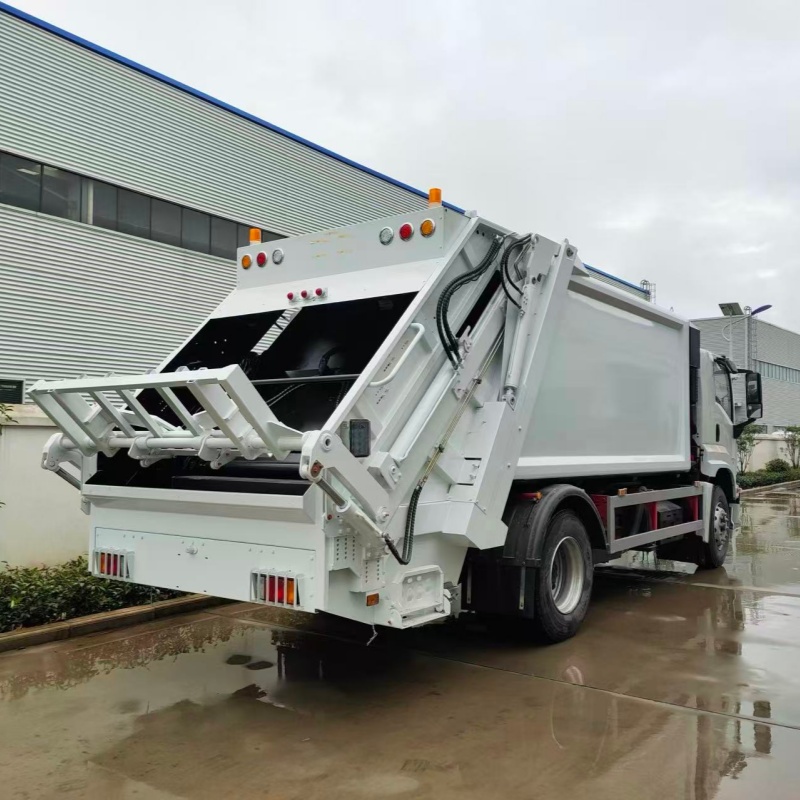

Name: Isuzu 16,000 Liters Compactor Garbage Truck
Availability: InStock

This Isuzu compactor garbage truck is a high-efficiency waste collection vehicle built on the reliable Isuzu Giga chassis, specially designed for municipal sanitation and waste management projects across Africa, the Middle East, Central Asia and Southeast Asia. It features a powerful compression system that crushes and compresses waste to maximize loading capacity, reducing the number of trips and improving work efficiency. The rear loading mechanism allows convenient collection of waste from bins and curbside, while the sealed body prevents leaks and odors, keeping the city clean. With a durable Isuzu engine, strong power and low fuel consumption, it adapts well to harsh road conditions, high temperatures and heavy-duty use. Spare parts are widely available in the target regions, making maintenance easy and cost-effective. Ideal for sanitation departments, waste management companies and rental businesses, this truck offers reliable performance, long service life and excellent return on investment.

Highlights:

✅ High compression ratio: 16,000 Liters

✅ Chassis: ISUZU chassis (left-hand drive or right-hand drive available)

✅ High efficiency: Bidirectional compression with scraper and sliding plate, capable of compacting both hard and soft waste

✅ Safety: Hydraulic overload protection, anti-pinch protection, and interlock design for safer operation

Inquire Now

Isuzu compressed garbage truck for collecting and transferring various types of garbage

Your trusted waste collection and transfer solution

ISUZU 28m Telescopic Boom Aerial Work Platform

Applications

This ISUZU 16 meter compressed garbage truck is mainly suitable for the collection and transportation of urban municipal sanitation garbage, garbage transportation in residential communities, properties, schools, hospitals, scenic spots and other places, mixed removal and transportation of construction waste and decoration waste, as well as rapid removal and transportation of public area cleaning garbage.

High-efficiency compression: Volume reduced to 1/3–1/4, enabling more loads with faster transportation, cost reduction and efficiency improvement
Fully sealed anti-fouling design: No leakage, no odor, full collection of sewage, meeting environmental protection regulations
Reliable chassis: ISUZU heavy-duty / light-duty truck chassis, featuring strong power, high load capacity and adaptability to complex road conditions
Intelligent and convenient: One-key compression, remote control and automatic unloading, reducing labor intensity

Why choose our 16-party compressed garbage truck

Flexible Body: The compact overall size and small turning radius enable easy operation in old residential areas, narrow streets and urban villages. It can also access underground garbage rooms and basements.
Strong Compression Force: Featuring a high compression ratio, it can strongly compress household waste, plastic bags and cartons, reducing round trips and saving time, fuel and labor.
Excellent Sealing Performance: Equipped with a sewage tank for collection, it prevents dripping, odor emission and scattered debris during transportation, ensuring cleanliness, environmental protection and no disturbance to residents.
Easy Operation: Supports automatic bucket lifting for loading, one-key compression and one-key unloading, ensuring effortless operation and reducing labor costs.

Comprehensive Safety Protection

Emergency stop switch: Equipped with an emergency stop button, which can cut off all actions with one press in case of abnormality.
Hydraulic lock: Mechanical limit + hydraulic locking are provided for the scraper, pusher plate and filler to prevent misope ration or cylinder slipping.
Electric control interlock: Compression cannot be performed if the filler door is not closed properly, and the vehicle cannot run if it is not in place.

Technical Specifications

Overall Dimensions (L×W×H)	9,800 × 2,500 × 3,300
Gross Vehicle Weight	25,000 kg
Curb Weight	10,500 kg
Rated Payload	14,500 kg
Approach / Departure Angle	20° / 12°
Max Speed	95 km/h
Wheelbase	5200 mm
Braking System	Air brake + ABS
Fuel Tank Capacity	200 L
Effective Volume	16 m³ (16,000 L)
Body Material	Q345 high-strength steel
Compression Type	Hydraulic compression, rear loading
Compression Ratio	3:1
Loading Cycle Time	≤ 30s
Unloading Time	40–50 seconds (full discharge)
Hydraulic System Pressure	16-20 MPa
Operation Mode	Electric + Manual + Remote Control (Inside/Outside/Remote)
Rear Mechanism	Flip Bucket / Triangle Bucket / Large Ground Bucket (Optional)
Sewage Tank	Fully Sealed with Drainage Pipe

Video

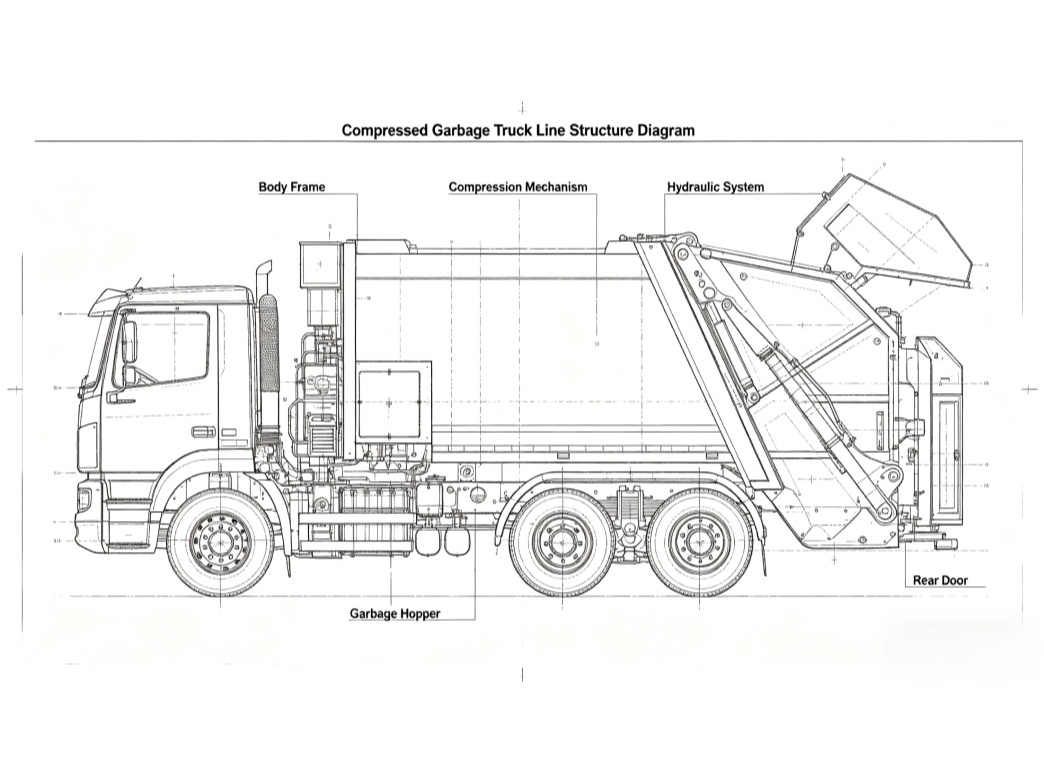

Drawing

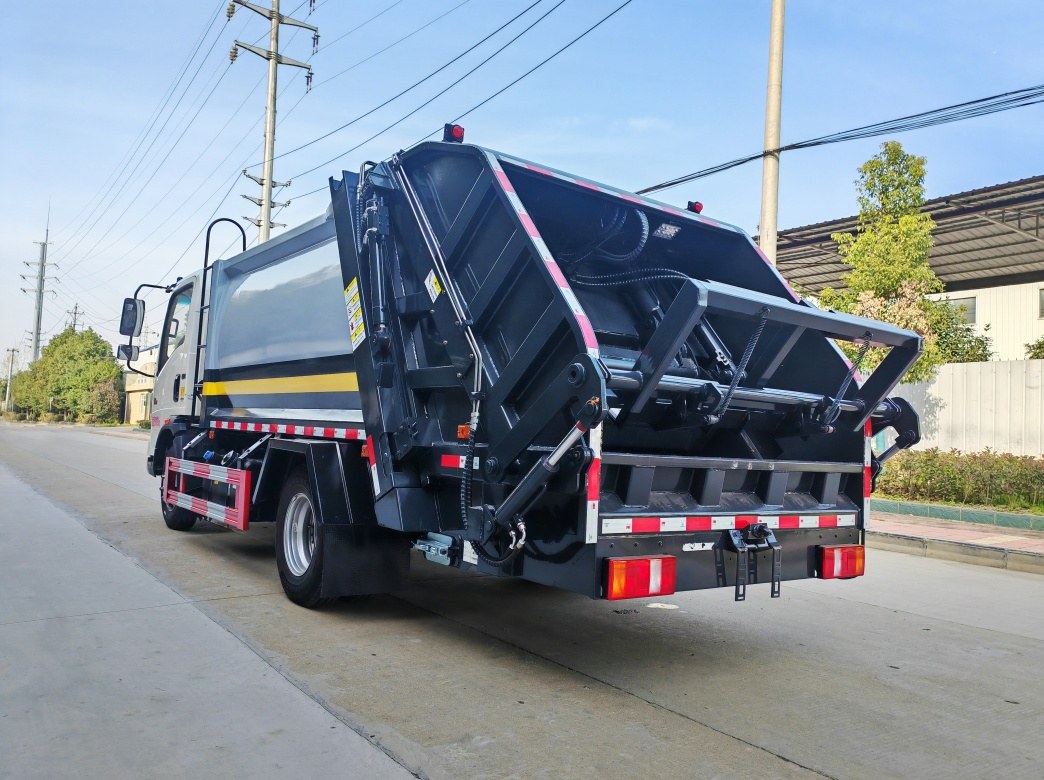

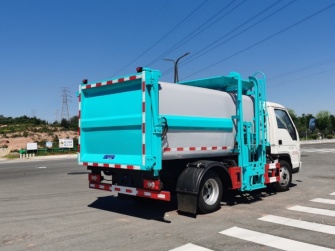

Kitchen waste collection truck

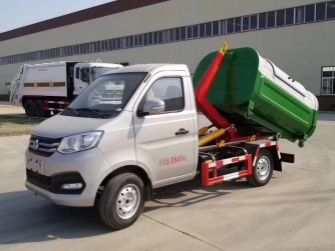

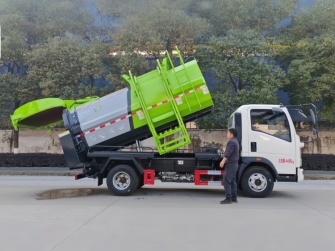

Double-opening hook-arm garbage bin

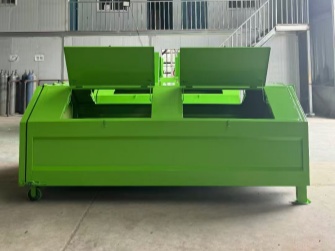

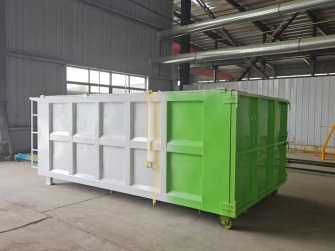

Waste turnover box

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast shipping of genuine DFL and hydraulic components to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the lead time for a customized 16-cubic-meter garbage compactor truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our garbage compactor truck with ISO and CE standards, and the ISUZU chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The ISUZU 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
